ES CULVERT
ES CULVERT
Features
Reduced cost compared to conventional methods
Cost can be reduced compared to the conventional on-site box culvert method.
Shortened construction time
Factory-processed, ES Culvert can be assembled easily and worked quickly, thus enabling a significant reduction in construction time.
Compact, lightweight sections offer superior transport and handling
Each section is compact and lightweight to enable easy transport, even at sites where it is difficult to carry in materials.
Adapts to bearing ground settlement
Because ES Culvert has excellent adaptability to settlement in the vertical direction, the required properties of the bearing ground can be minimized.

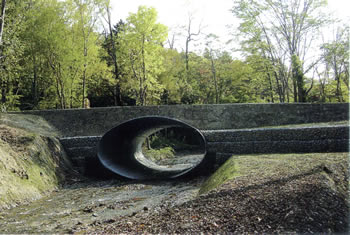

Completed view (1)
Usage
(1) Underpasses
(2) Water/drainage channels
(3) Alternative to small-scale bridges |

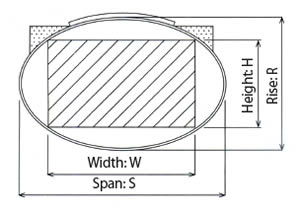

Example of cross-sectional dimensions
|
|
|

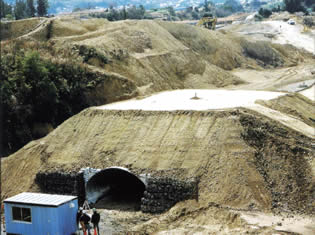

Completed view (2)
Relationship of cross-sectional dimensions and cavity section (Example)
Structural dimensions |
Cavity section |
S (mm) |
R (mm) |
W (mm) |
H (mm) |
6,004 |
4,286 |
4,000 |
3,072 |
6,594 |
4,691 |
4,000 |
3,601 |
6,942 |
5,009 |
4,500 |
3,685 |
7,532 |
5,415 |
4,500 |
4,209 |
8,122 |
5,820 |
5,000 |
4,442 |
8,470 |
6,138 |
5,500 |
4,524 |
9,060 |
6,544 |
6,000 |
4,752 |
9,650 |
6,949 |
7,000 |
4,637 |
(Note)
When studying cross-section for actual applications at site, decisions should be made by taking into account factors such as paving method and ancillary facilities. We also support structural dimensions other than those indicated above. |
|
Component Members
|
|
|
|
|

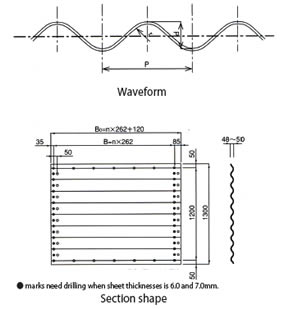

Waveform shape and section dimensions
Waveform |
p (mm) |
d (mm) |
r (mm) |
Type 2 |
150 |
48.0 ~ 50.0 |
28 |
Sheet thicknesses used (mm)
Five types including 4.0, 4.5, 5.3, 6.0 and 7.0 |
Section material
JIS G 3101: Rolled steel for general structure SS330, or equivalent |
Section types
Bolt pitches
n |
Effective arc length
B (mm) |
Overall section length
Bo (mm) |
Designation |
5 |
1310 |
1430 |
5-pitch section |
6 |
1572 |
1692 |
6-pitch section |
7 |
1834 |
1954 |
7-pitch section |
8 |
2096 |
2216 |
8-pitch section |
9 |
2358 |
2478 |
9-pitch section |
|
|
|
|
|
|

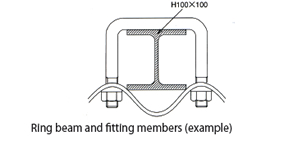

Ring beam types and fitting members
Ring beam types |
Fitting member |
Material |
H100x100x6x8 |
U bolt |
JIS G 3101 :
Rolled steel for general structure SS400, or equivalent |
H125x125x6.5x9 |
Angle steel, hexagon bolt |
JIS G 3101 :
Rolled steel for general structure SS400, or equivalent |
|
|
|
|
|
|

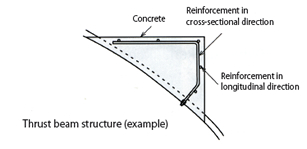

Example of thrust beam specification
Type |
Standard |
Remarks |
Concrete |
Design standard strength
ck = 18N/mm2 |
|
Reinforcement |
JIS G 3112 Bar steel
for reinforced concrete
SD295A D 16
SR235 20 |
Reinforcement in
longitudinal direction
Reinforcement in
cross-sectional direction |
|
|
|
|
Plating specifications
Deposit volume of hot-dip galvanizing
Member name |
Minimum deposit volume (g/m2) |
Remarks |
Culvert section |
450 |
JIS H 8641 (hot-dip galvanizing), type 2, 45 |
Ring beam |
450 |
JIS H 8641 (hot-dip galvanizing), type 2, 45 |
Bolt |
350 |
JIS H 8641 (hot-dip galvanizing), type 2, 35 |
Fitting member |
350 |
JIS H 8641 (hot-dip galvanizing), type 2, 35 |
|
