BEATTY

BEATTY PRODUCTS
SCAFFOLDING PRODUCTS

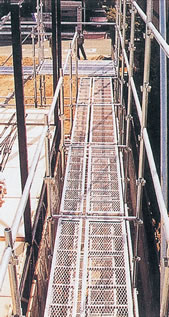

STATIONARY HANDRAIL TYPE (STEEL BEATTYTM GUARD)

A lightweight, handrail presetting frame for framed scaffolding, with improved safety and aesthetic appearance.

Prevents fall accidents during work because the scaffold and handrail frame are assembled simultaneously

Handrail function can be added easily because handrails attach directly to existing scaffold frames

The frame can be attached easily without using any special tools

Wedge clamp used for the lower fixing bracket secures the handrail and ensures safety

Attractive appearance matches the urban environment

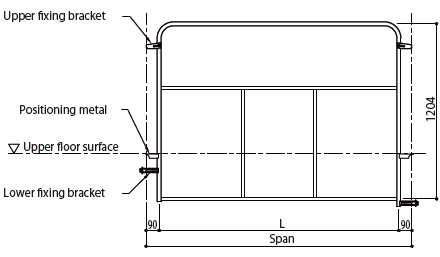

Shape and dimensions

top

Movable Elevating Scaffold (UP STAR 21JR / 25 / 36)

A movable elevating scaffold for laborsaving and improved efficiency.

Use of outriggers and a toppling margin of 6 degrees or greater provide a high degree of safety

Uses a spring balance-type elevation system, enabling the work floor to be moved easily up or down by manual operation

This product has passed various strength tests by the Scaffolding and Construction Equipment Association of Japan and demonstrates outstanding durability effects

Thanks to its lightweight and compact construction, this scaffold can be easily moved and stacked for storage



Up Star 21Jr

Up Star 25

Up Star 36

top

Scaffold & Timber Support (TS SUPPORT)

An easily assembled/disassembled support method that also serves as a scaffold to provide safe work platform and walkway.

Functions as a strong support and scaffold

Very easy to assemble and disassemble

Ensures a spacious work platform and walkway

Functional configuration of components

Versatility enables use for events, landscape design, etc.

TS support standard unit configuration

Usage

Support for extra-massive slabs (slabs for power stations or similar facilities)

Building material for transit warehouses, vehicle repair shops, etc.

Civil engineering works such as box culverts and underground piles

Stage structures for shows and events and special structures for sports (skiing slope, climbing wall, etc.)


Allowable load
TS support : Diameter of main member 60.5: 63.7kN (6.5tf) max. (when restrained at 1.7-meter intervals)
Lightweight TS support : Diameter of main member 48.6: 34.3kN (3.5tf) max. (when restrained at 1.7-meter intervals)

top

ONE-SIDED SCAFFOLD (BEATTYTM FOLD)

This scaffold can be quickly assembled on site, with emphasis on safety and workability.

One-touch wedge fastening system enables assembly within a short time

Easy-to-use brackets and lightweight tube jack provide excellent economic efficiency

Most suitable for low-and medium-rise housing
